All stainless steel Siphon

Features

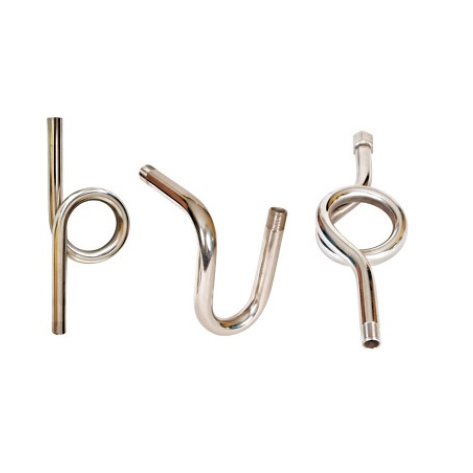

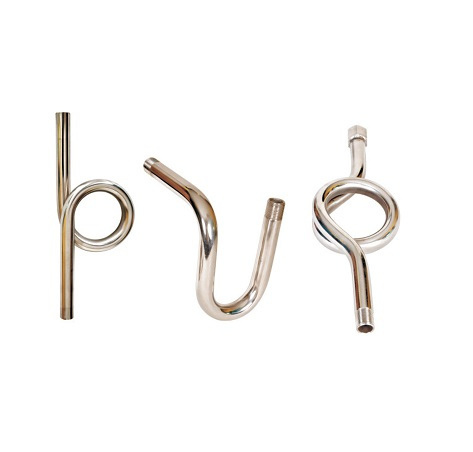

• Pigtail, Coil and “U” type shapes
• Maximum temperature up to 400°C
• Nominal pressure up to 160 kg/cm²
• TIG welded & hydro tested
• Made with seamless pipes

Application

• Siphons are used mainly to protect pressure instruments, gauges, switches and transmitters directly coming in contact with high temperature process fluids or vapors
• These are mounted between process and pressure instrument
• They reduce process pulsation and generate cooling effect to save the instrument
