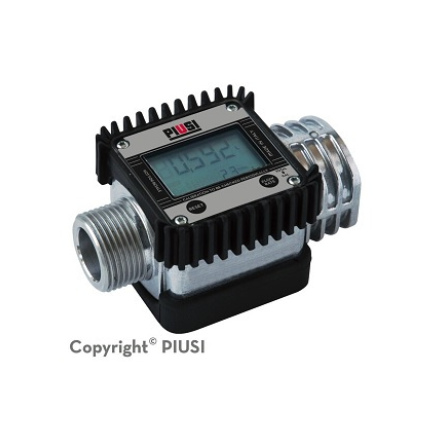

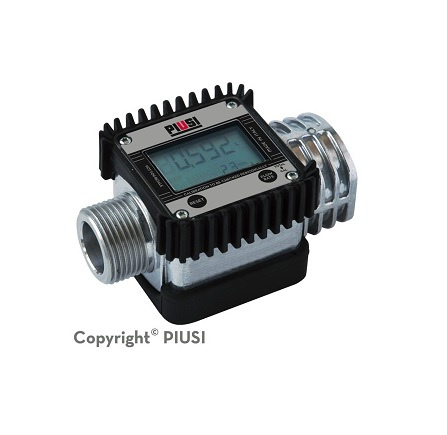

The K24-A digital diesel flow meter has been designed to monitor the flow of low-viscosity fluids. Easy to install, in-line or at the end of the dispensing pipe, K24-A has a display that can be applied in various positions to facilitate reading. The sturdy housing and sealed internal electronic board make it suitable for use in virtually any working condition.

K24-A has an aluminum body and a polypropylene turbine. The pulse type is single-channel, reed switch. The electronic board with LCD shows a partial of 5 digits from 0.1 to 99999, for a total of 6 digits 1 to 999999 Total, resettable. The display also shows the supported flow rate, up to a maximum of 120 l/min.

The K24-A diesel flow meter guarantees a metering accuracy of +/- 1%; if the metering turns out inaccurate, K24-A can always be calibrated to ensure maximum precision in its operation. With a pressure drop of < 0.03 bar at 120 l/min and a repeatability of 0.2 %, the K24 flow meter is powered by two AAA batteries. Thanks to its rotating display, K24-A can be adapted to any application and working condition.
