OCIO is a tank level indicator for fuel and oil that detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.

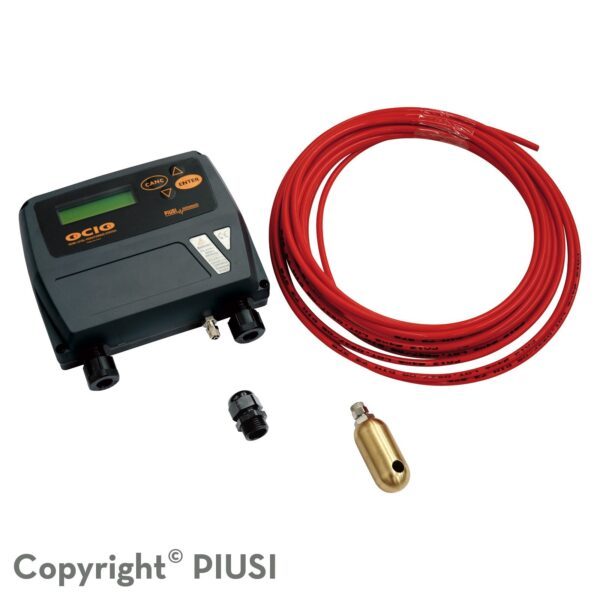

The system consists of:

A control unit for displaying the level and managing the system. The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices. A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.


  • The software is used to:
  • Set tank dimensions and type
  • Define indication level
  • Define alarm levels
  • Calibrate the instrument
  • Define measurement unit


In base of on the set alarm levels, the control unit deactivates or activates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.

  • Probe tube length: 10 m.
  • Maximum measurable height: 4 m.
