UFLOW Gate Valve
UFLOW Gate Valve
UFLOW Gate Valve
UFLOW Gate Valve
Category:
Valves
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

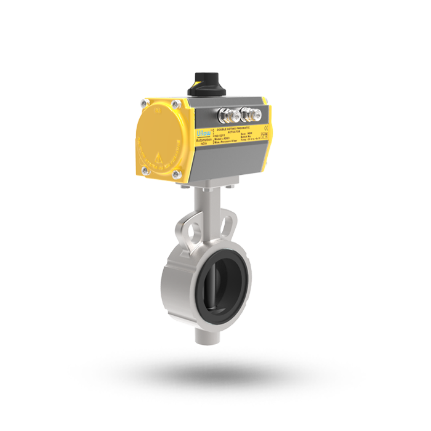

  • Bi-directional zero leakage butterfly valve. ­
  • ISO Pad for mounting, Gear Operator / Actuator. ­
  • Extremely small play between the stem and disc due to ‘Double D’ drive. ­
  • Accurate dual stem sealing prevents leakage. ­
  • Butterfly valve can be mounted between flanges as per ASME, BS-10. ­
  • 100% tested under Water and Pneumatic. ­
  • 360°-disc rotation. ­
  • Design Standard: ISO 5211, API 609, ASME B16.5 150#. ­
  • Nominal Diameter: DN50 -DN250. ­
  • Pressure Rang (bar): PN10, PN16. ­ ANSI B16.5 150#, BS10 TABLE E, TABLE F, TABLE H, Flange Accommodation. ­
  • Face to Face Dimension: API 609 (CAT A). ­
  • Operator mounting flange: As per ISO 5211. ­
  • Operator: Hand Lever / Gear / Actuator. ­
  • End connection: wafer end. ­
  • Leakage Class: 100% tightness at full differential Pressure.
