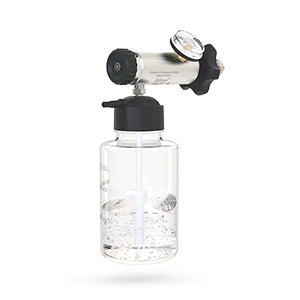

• Pressure regulator with humidifier.
• Brass construction.
• Flow control unit.
• Good grip, easily operated hand-wheel.
• Preset integrated pressure relief valve (Above 180bar).
• Easy to assemble humidifier.
• Easy to clean.
• Flow-meter with a stop at 0.
• Teflon taped cylinder connection.
• Ergonomic plastic hand-wheel on inlet connection for easily attach with cylinder by hand.

Media: Medical Oxygen (O2)

Inlet Pressure: Up to 150 bar

Nominal Outlet Pressure: 0 - 50 psi

Inlet Connection: G5/8" BSP

Flow range: 0 - 15 lpm / 0 - 25 lpm

Body Material: Aluminum anodize

Filter: 40 microns

Dial: Plastic white, black lettering

Dial Size: 50 mm

Flow setting: 12 Steps (including zero position)

Operating temperature: -10°C to 180°C

Sealing material: Viton

Design Standard: IS/ISO 10524-1:2018
