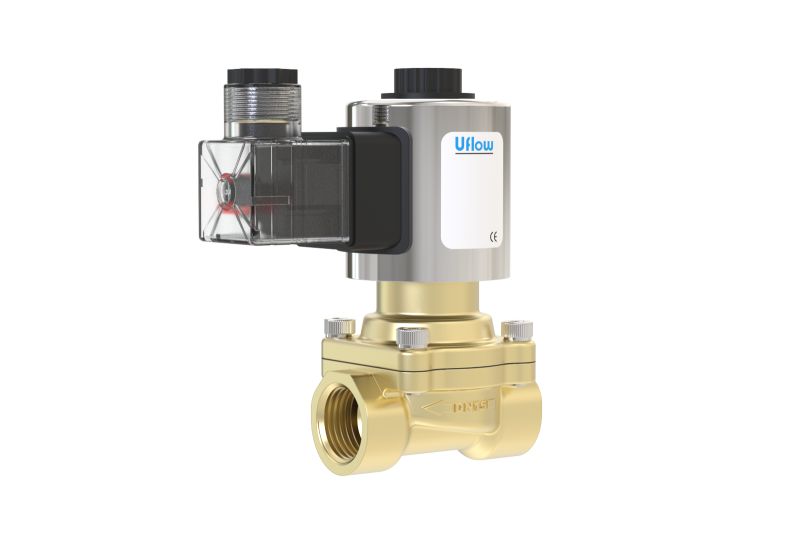

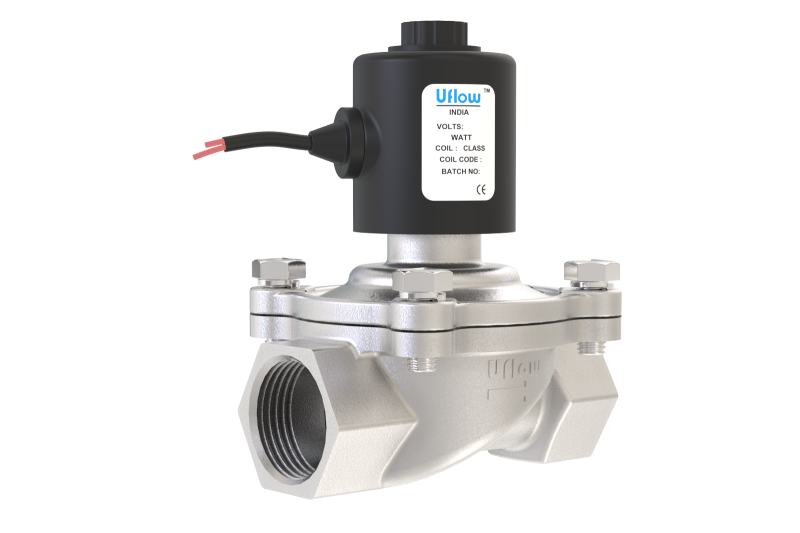

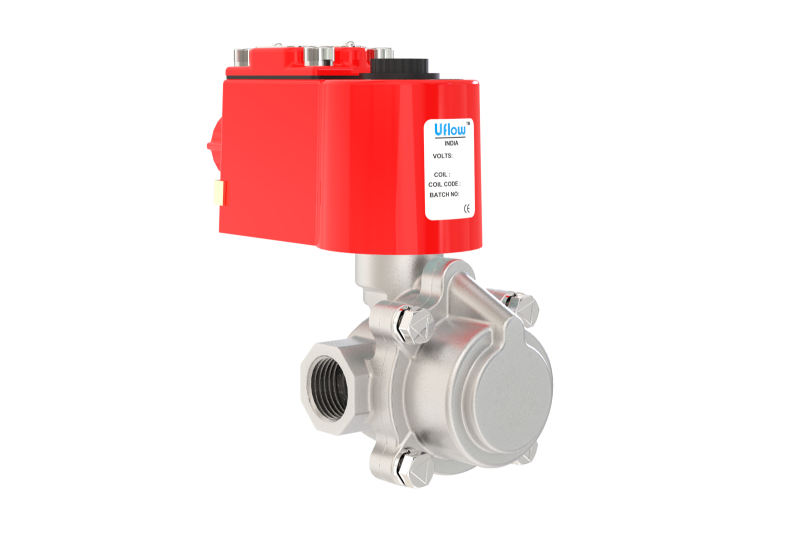

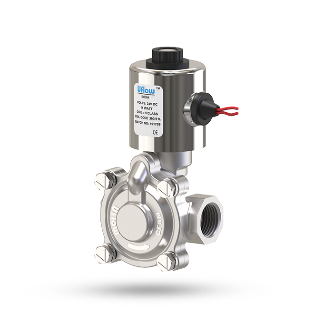

UFLOW Pilot operated Diaphragm Valve
Category:
Valves
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description
  • Port: Available BSP / NPT

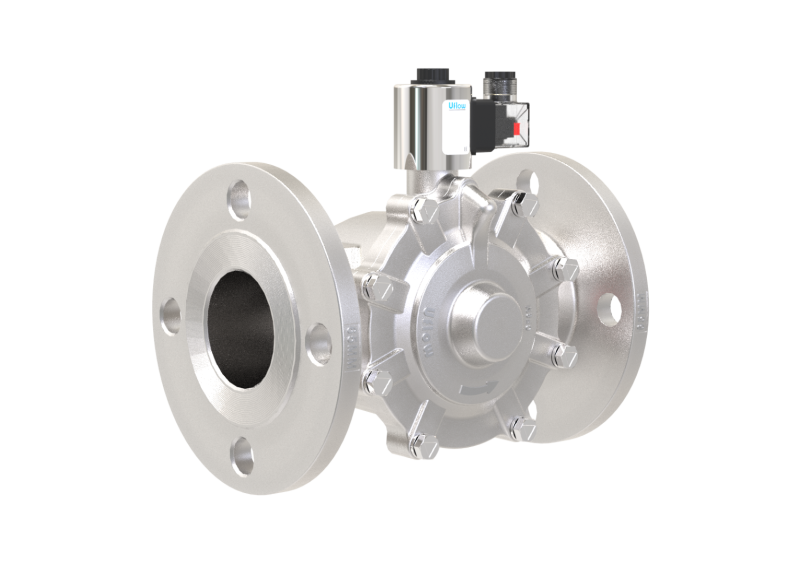

  • End Connection: Screwed / Flange
  • Body Material: SS ASTM A351 Grade CF8 / CF8M
  • Diaphragm/ Media temperature: Nitrile (NBR), -30°C to 90°C / EPDM, -10°C to 140°C / Viton, -10°C to 180°C
  • Circumstance Temp: -10°C to 70°C
  • Media: Air, Water, Chemical, Gas
  • Main Features: Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & highly corrosive environment.
  • Operating Voltage and power consumption: 24VAC/7W, 110VAC/8W, 230VAC/8W, 12VDC/10W, 24VDC/11W
  • Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as require.
  • Optional Feature: 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.
  • Other Specification Data: Available on Request - High Pressure 20Kg Series.



NOTE: Use of filter in the inlet port is recommended.
